| Design |

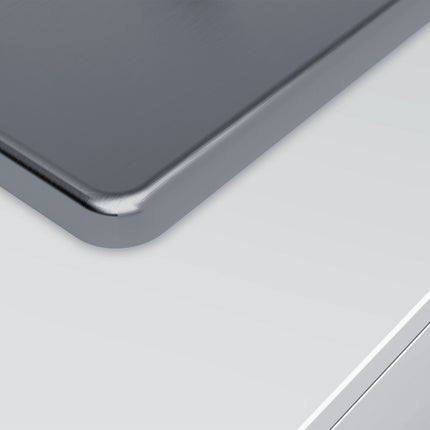

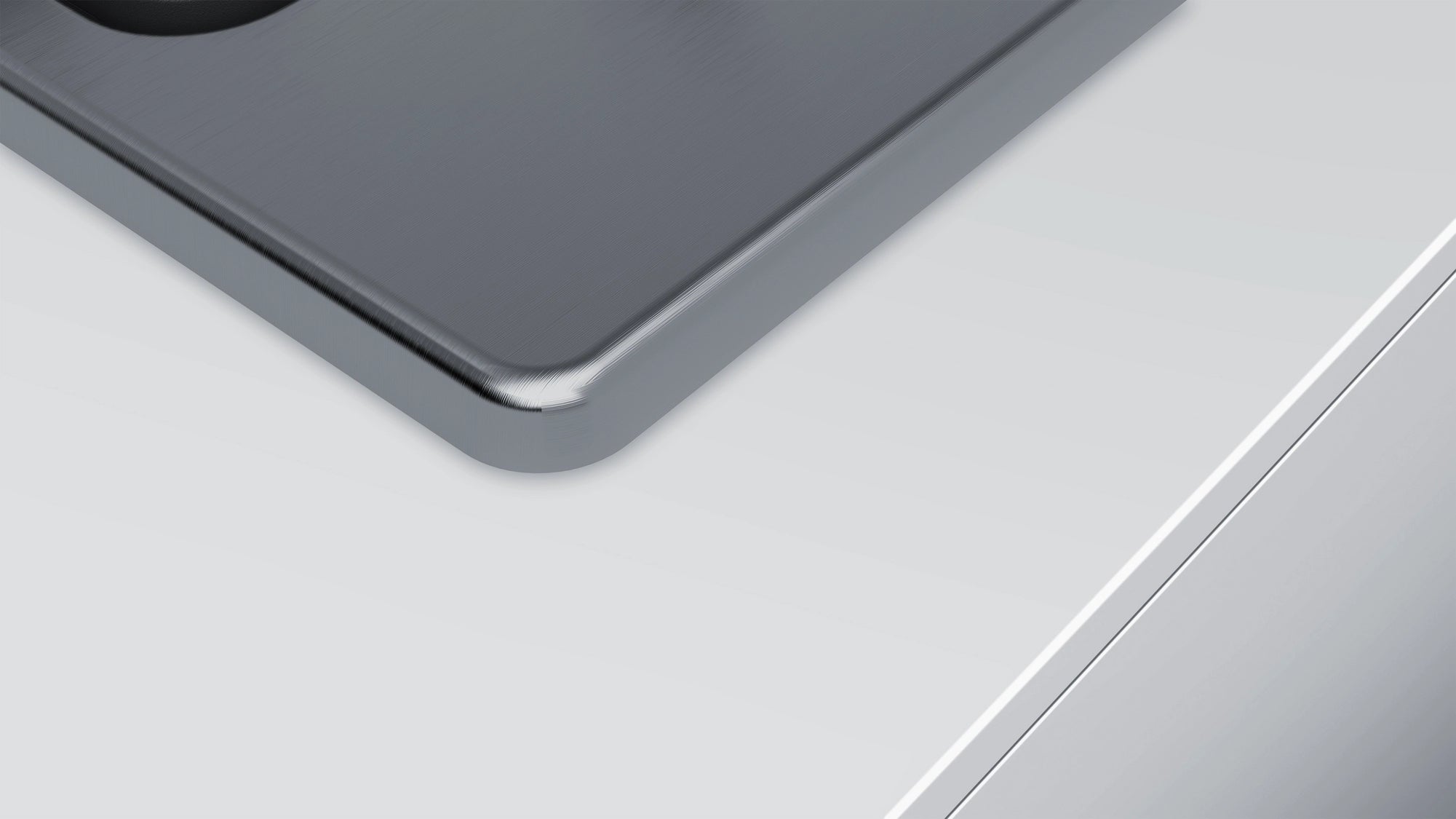

- Stainless steel surface
- Cast iron pan supports
|
| Usage convenience |
- Design co-ordinated control dials: easily access dials in front with strong grip for effortless turning.
- Ignition via control dials: just push and turn the dials to ignite the flame.
|
| Burners and power |

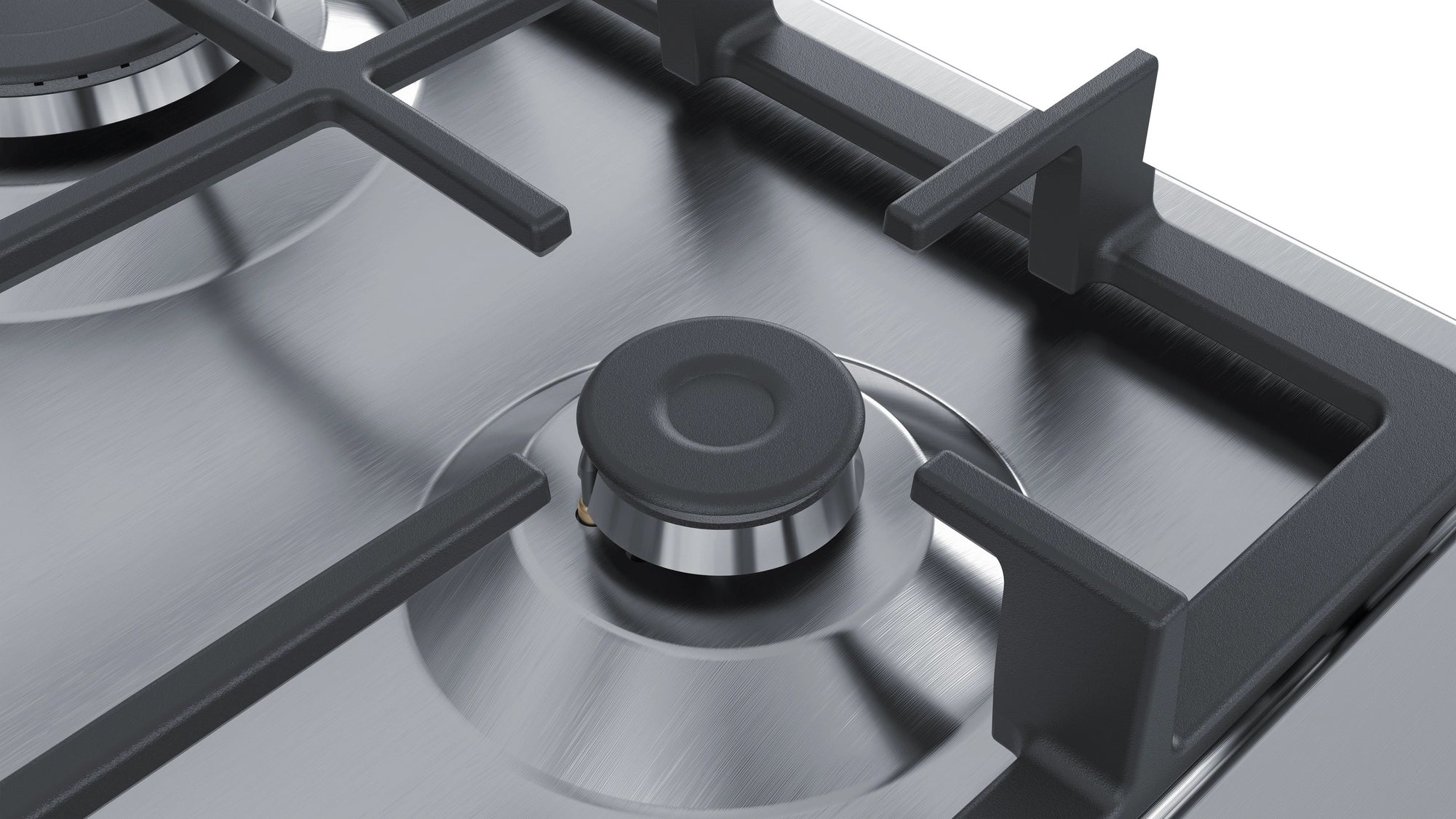

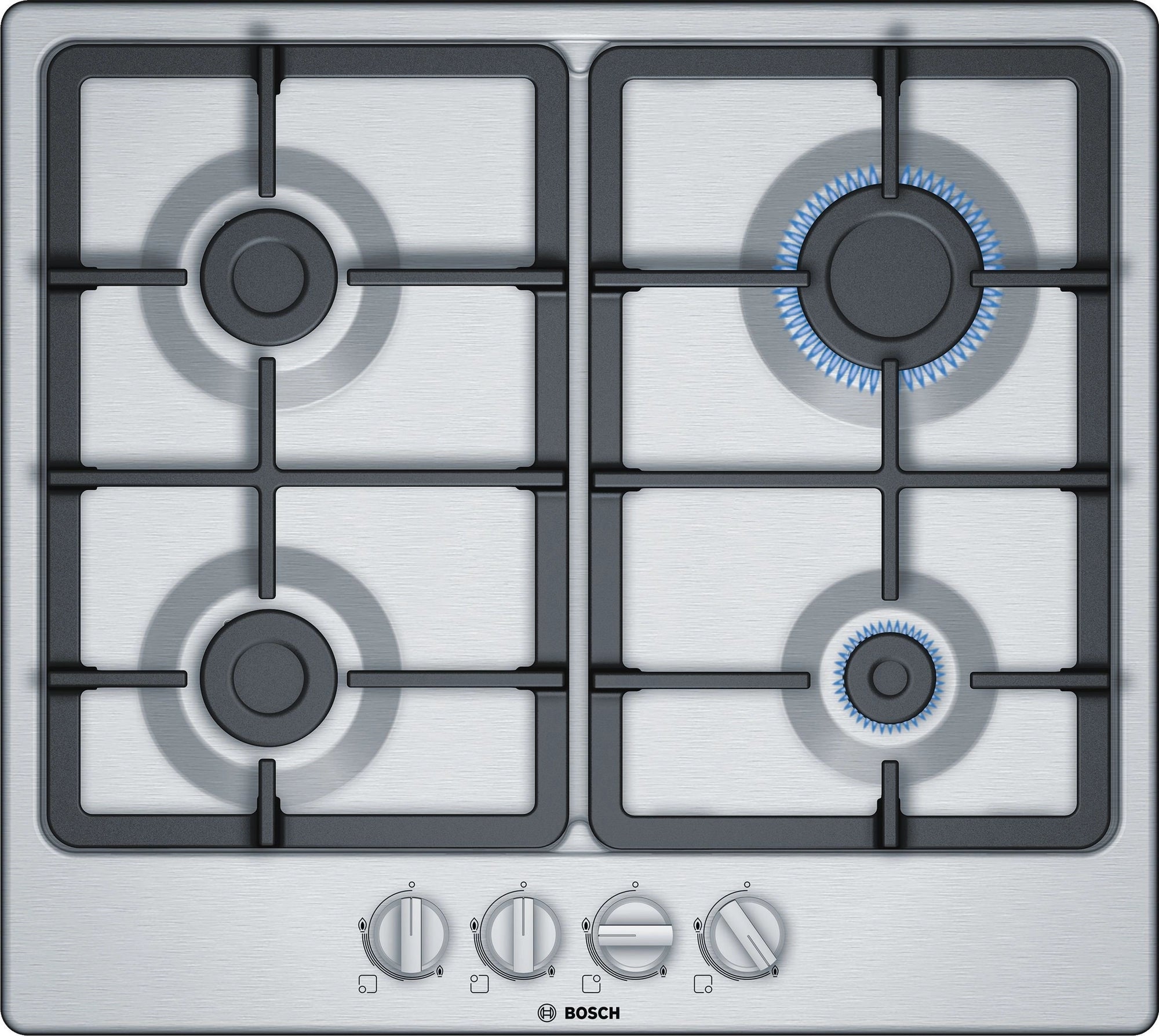

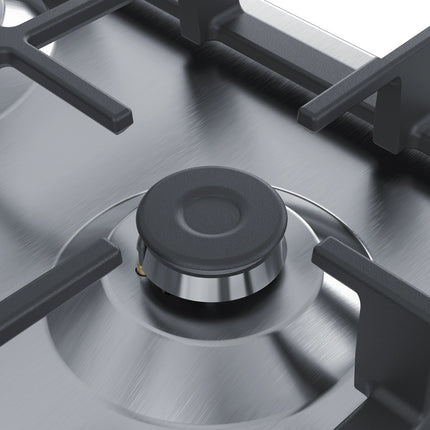

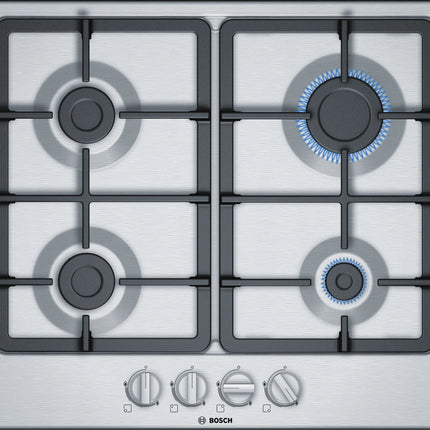

- 4 gas burners:
- Left front: standard burner up to 1.75 KW (depending on gas type)
- Left rear: Standard burner up to 1.75 KW (depending on gas type)
- Right rear: high-speed burner up to 3 KW (depending on gas type)
- Right front: economy burner up to 1 KW (depending on gas type)
|
| Safety |
- Flame failure safety device: prevents unwanted gas flow when flame goes out.
|
| Installation (gas types & measurements) |
- Pre-set for natural gas
- Nozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.

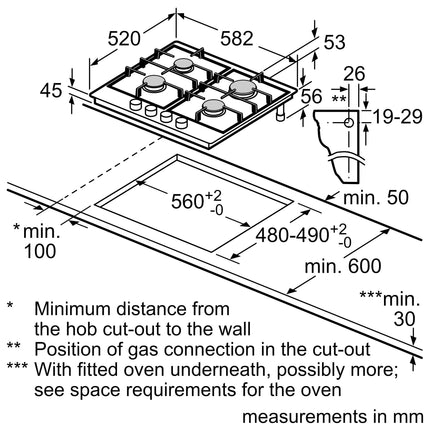

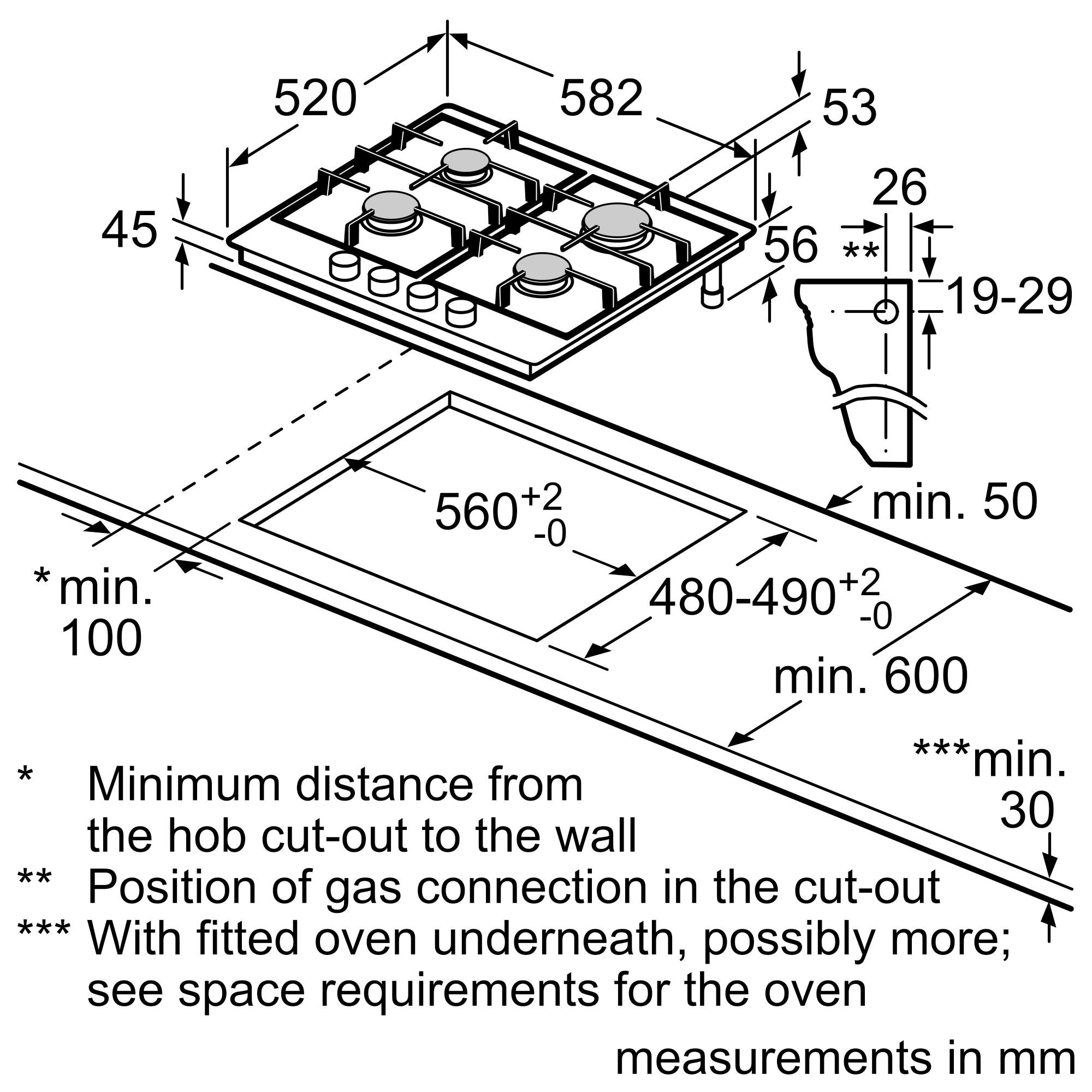

- Dimensions of the product (HxWxD mm): 53 x 582 x 520
- Required niche size for installation (HxWxD mm) : 45 x 560 x (480 - 492)
- Min. worktop thickness: 30 mm
- Power cord: 1 m
- Connected load: 7.5 KW
|
| Product series |
Series 4 |
| Construction type |
Built-in |
| Type of control |
Mechanical |
| Type of control settings |
sword knobs |
| Energy input |
Gas |
| Total number of positions that can be used at the same time |
4 |
| Number of gas burners |
4 |
| Number of electric cooking zones |
0 |
| Number of electric plates |
0 |
| Number of radiant plates |
0 |
| Number of halogen plates |
0 |
| Number of induction plates |
0 |
| Number of electric warming zones |
0 |
| Location of control panel |
Front |
| Gas type |
Nat gas H/E/(L) 20 (25) mbar |
| Alternative gas type |
Liquid gas G30,31 28-30/37mbar |
| Basic surface material |
Stainless steel |
| Main colour of product |
Stainless steel |
| Basic color of product |
Not applicable |
| Gas connection rating |
7500 W |
| Current |
3 |
| Electrical connection rating |
1 W |
| Voltage |
220-240 V |
| Voltage Minimum |
220 V |
| Voltage Maximum |
240 V |
| Frequency |
50; 60 |
| Frequency Minimum |
50 |
| Frequency maximum |
60 |
| Length of electrical supply cord |
100.0 cm |
| Plug type |
no plug (electrical connection by electrician) |
| Gas connection |
rear, right |
| Width of the product |
582 mm |
| Height of the product |
45 mm |
| Depth of the product |
520 mm |
| Height of the packed product |
168 mm |
| Width of the packed product |
596 mm |
| Depth of the packed product |
798 mm |
| Minimum niche height |
480 mm |
| Maximum niche height |
492 mm |
| Minimum niche width |
560 mm |
| Maximum niche width |
562 mm |
| Niche depth |
45 mm |
| Net weight |
9.6 kg |
| Gross weight |
10.5 kg |
| Efficiency 1st heating element - Gas burner |
57.0 % |
| Efficiency 3rd heating element - Gas burner |
57.0 % |
| Efficiency 5th heating element - Gas burner |
57.0 % |
| Energy Smart appliance, able to optimise consumption pattern (2017/1369/EU) |
No |
| Capability of wireless communication |
No |
| SIM card slot available |
No |
| Kind of remote access |
No, only direct access |
| Possibility of remote upgrade |
No |
| Possibility of remote update for maintenance |
No |
| Automatic programmes |
No |
| Location of the heating element |
front left |
| Location of 2nd heating element |
center left |
| Location of 3rd heating element |
back left |
| Location of 4th heating element |
middle back |
| Location of 5th heating element |
back right |
| Location of 6th heating element |
center right |
| Location of 7th heating element |
front right |
| Location of 8th heating element |
front middle / central |
| Location of 9th heating element |
front centre/cent |
| Type of the heating element |
Gas |
| Type of 3rd heating element |
Gas |
| Type of 5th heating element |
Gas |
| Type of 7th heating element |
Gas |
| Power of the heating element |
1.75 W |
| Power of 3rd heating element |
1.75 W |
| Power of 5th heating element |
3 W |
| Power of 7th heating element |
1 W |
| Power on indicator |
No |
| Number of indicators |
0 |
| Type of lid |
Without |
| Type of pan support |
Elongated cast iron pan support |
| Type of safety device for gas |
Electromagnetic for each burner |
| Ignition system |
Yes |
| Residual heat indicator |
Without |
| Main on/off switch |
No |
| Safety device |
Flame failure safety device |
| Timer |
No |
| Possibility to combine cooking zones/cooking areas |
No |
| Time-setting options |
No delay options |
| Hob type |
Gas |
| Prevent boiling over with cooking sensor |
No |
| Flexible induction technology supported |
No |
| Hob with booster function |
No |
| Temperature control for perfect frying results |
No |
| Cord included |
Yes |
| Wok burner supported |
No |
